HT - 23814-C3

Name: HT - 23814-C3
Brand: Harvey Tool
SKU: HAR-23814-C3
Price: 124.7 USD
Availability: InStock

Harvey Tool

No reviews yet Write a Review

$124.70

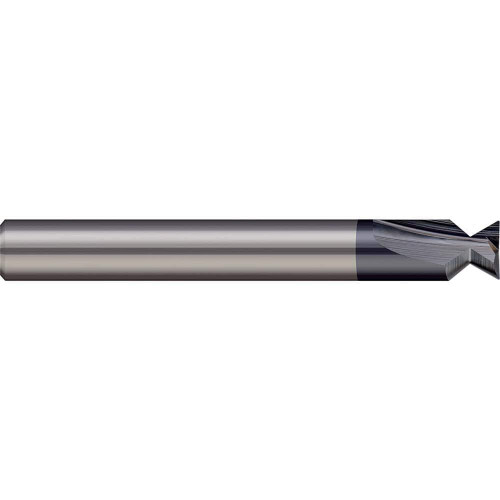

0.1350" Cutter DIA x 0.0150" (1/64) Radius x 48° included Carbide Dovetail Cutter with Drop Hole Allowance, 2 Flutes, AlTiN Coated

Unit of Measure

Imperial

Diameter

0.14 Inch

Shank Size

0.19 Inch

Overall Length

2 Inch

Coating/Finish

Neck Diameter (Decimal)

0.09

Corner Radius (Decimal)

0.02

Number of Flutes

Included Angle

48 degrees

Corner Radius (Fractional)

1/64

Shank Size (Fractional)

3/16

Angle per Side

24 degrees

Radius Center (Decimal)

0.08

Neck Radius (Decimal)

0.01

O Ring X Section (Decimal)

0.11
