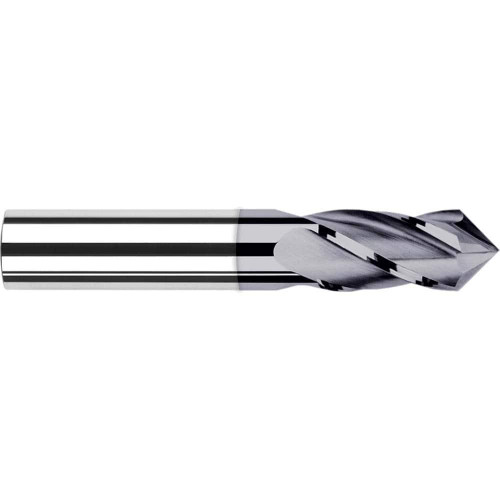

Harvey Tool Drill Mill: 1/32" Dia, 3/32" LOC, 1-1/2" OAL, 82° Included, 4 Flute, AlTiN, 26502-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-26502-C3
$63.10

Harvey Tool drill mill, 4 flutes, mill style end, external coolant. Solid carbide, AlTiN coating. Manufacturer part number 26502-C3.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0930
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
3/32
Overall Length (Fractional)
1-1/2
Number of Flutes
4
Included Angle
82 degrees
Cutting Diameter (Fractional)
1/32
Shank Diameter (Fractional)
1/8
Cutting Diameter (Decimal)
0.0313
Coolant Option
External Coolant
Angle per Side
41 degrees
Size System
Fractional
Web Thickness (Decimal)
0.0030
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Mill Style
LxD Ratio
3xD
Material
Solid Carbide
