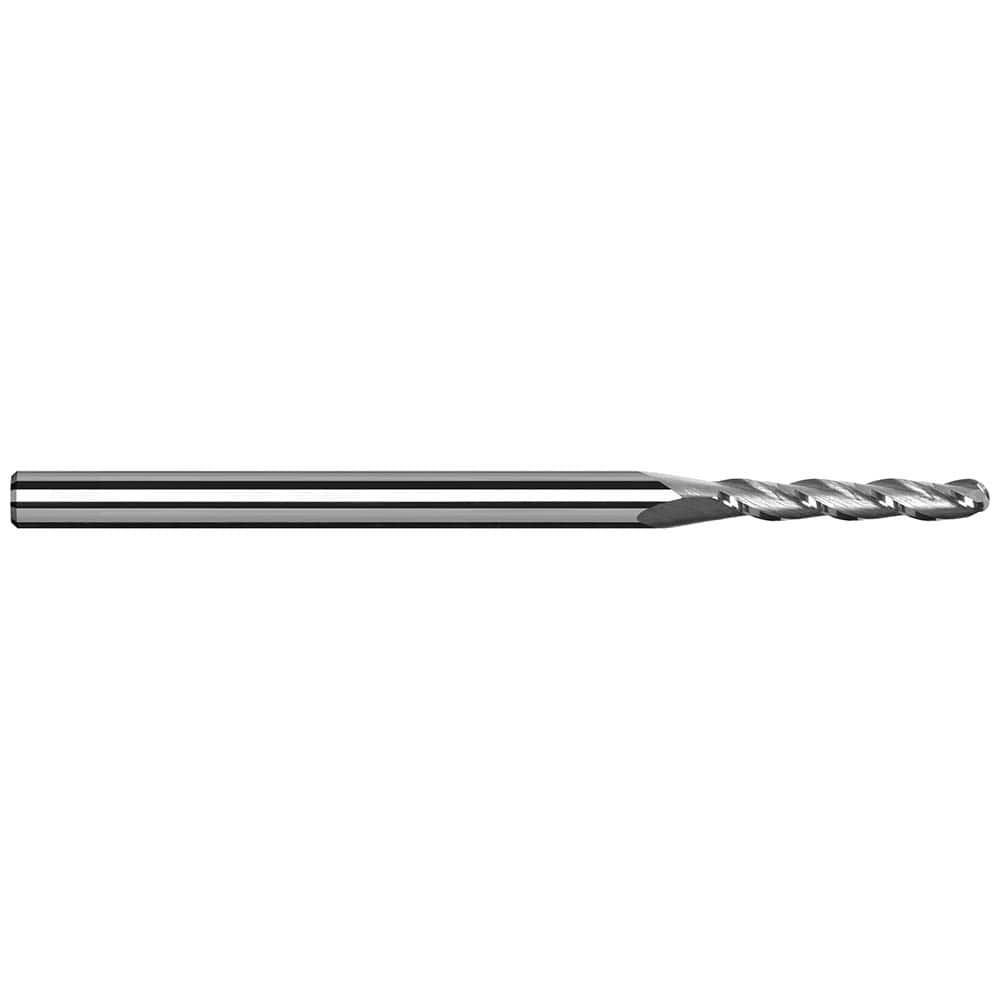

Harvey Tool Ball End Mill: 1/8" Dia, 1/2" LOC, 1-1/2" OAL, 2 Flute, Uncoated, 27908

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-27908
$33.00

Harvey Tool ball end mill for non-ferrous metals, 2 flutes, 45 degree helix, center cutting. Solid carbide, uncoated. Manufacturer part number 27908.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1250
Length of Cut (Decimal)
0.5000
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
1/2
Overall Length (Fractional)
1-1/2
Number of Flutes
2
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Ball
Helix Angle
45 degrees
LxD Ratio
4xD
Material
Solid Carbide
Shank Tolerance
h6
Workpiece Material
Non-Ferrous
Harvey Tool Ball End Mill: 1/8" Dia, 1/2" LOC, 1-1/2" OAL, 2 Flute, Uncoated, 27908
$33.00
