HT - 28520

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-28520
$162.00

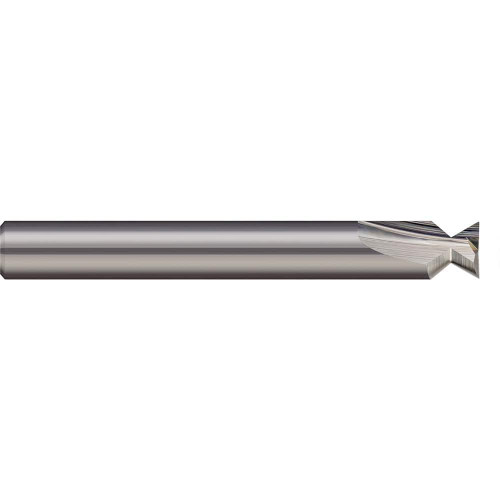

0.3125" (5/16) Cutter DIA x 0.0100" Radius x 40° included Carbide Dovetail Cutter, 3 Flutes

Specifications

Unit of Measure
Fractional
Diameter
5/16 Inch
Shank Size
5/16 Inch
Overall Length
2-1/2 Inch
Coating/Finish
UN
Length of Cut (Decimal)
0.19
Length of Cut (Fractional)
3/16
Overall Length (Decimal)
2.50
Neck Diameter (Decimal)
0.19
Corner Radius (Decimal)
0.01
Number of Flutes
3
Diameter (Decimal)
0.32
Included Angle
40 degrees
Shank Size (Decimal)
0.32
Angle per Side
20 degrees
HT - 28520
$162.00
