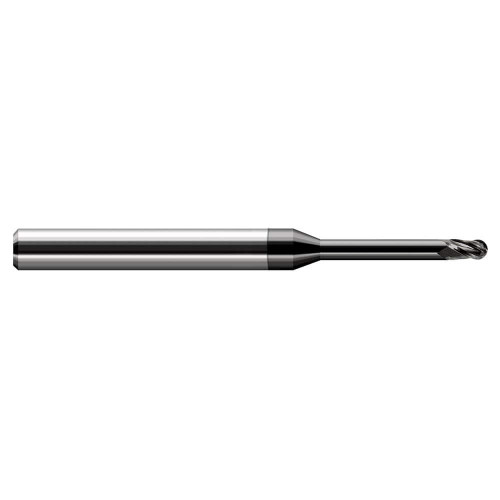

Harvey Tool Ball End Mill: .055" Dia, .082" LOC, 2-1/2" OAL, .450" Reach, 3 Flute, Amorphous Diamond, 34255-C4

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-34255-C4
$83.40

Harvey Tool ball end mill, 3 flutes, center cutting. Solid carbide, Amorphous Diamond coating. Manufacturer part number 34255-C4.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0550
Length of Cut (Decimal)
0.0820
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
Amorphous Diamond
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0535
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Decimal
Cutting Diameter (Metric)
1.40
Center Cutting
Yes
Reach Multiple
8x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Ball
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
0.4500
Harvey Tool Ball End Mill: .055" Dia, .082" LOC, 2-1/2" OAL, .450" Reach, 3 Flute, Amorphous Diamond, 34255-C4
$83.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
