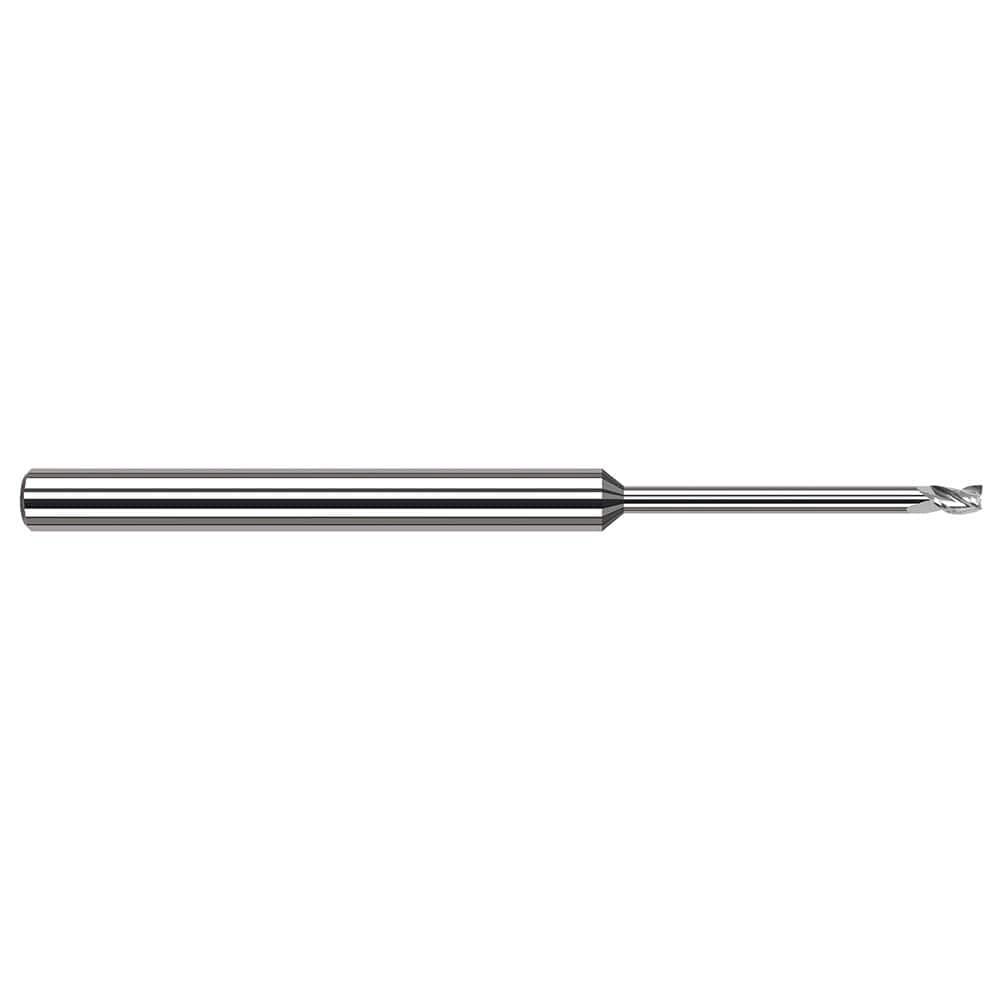

Harvey Tool Square End Mill: .020" Dia, .030" LOC, 2-1/2" OAL, 1/2" Reach, 3 Flute, Uncoated, 38020

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-38020
$108.70

Harvey Tool square end mill, 3 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 38020.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0200
Length of Cut (Decimal)
0.0300
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0192
Shank Diameter (Fractional)
1/8
Size System
Decimal
Center Cutting
Yes
Cutting Diameter (Metric)
0.50
Reach (Decimal)
0.5000
Reach Multiple
25x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
1/2
Harvey Tool Square End Mill: .020" Dia, .030" LOC, 2-1/2" OAL, 1/2" Reach, 3 Flute, Uncoated, 38020
$108.70
