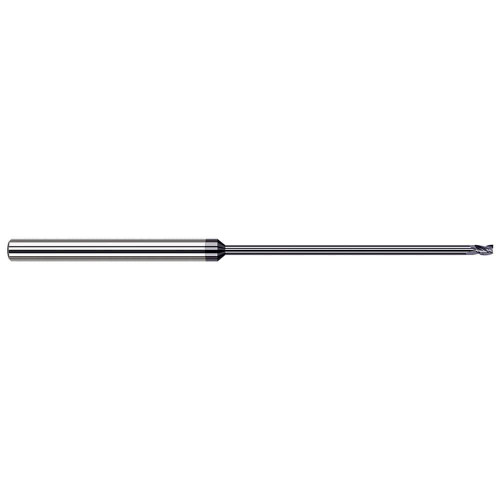

Harvey Tool Square End Mill: 1/8" Dia, 3/16" LOC, 4" OAL, 3-1/8" Reach, 3 Flute, AlTiN, 38108-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-38108-C3
$103.50

Harvey Tool square end mill, 3 flutes, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 38108-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1250
Length of Cut (Decimal)
0.1870
Shank Diameter (Decimal)
0.1250
Number of Flutes
3
Overall Length (Decimal)
4.0000
Coating/Finish
AlTiN
Length of Cut (Fractional)
3/16
Neck Diameter (Decimal)
0.1210
Shank Diameter (Fractional)
1/8
Overall Length (Fractional)
4
Size System
Fractional
Cutting Diameter (Fractional)
1/8
Center Cutting
Yes
Reach Multiple
25x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
3.1250
Reach (Fractional)
3-1/8
Harvey Tool Square End Mill: 1/8" Dia, 3/16" LOC, 4" OAL, 3-1/8" Reach, 3 Flute, AlTiN, 38108-C3
$103.50
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
