HT - 39731

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-39731
$91.10

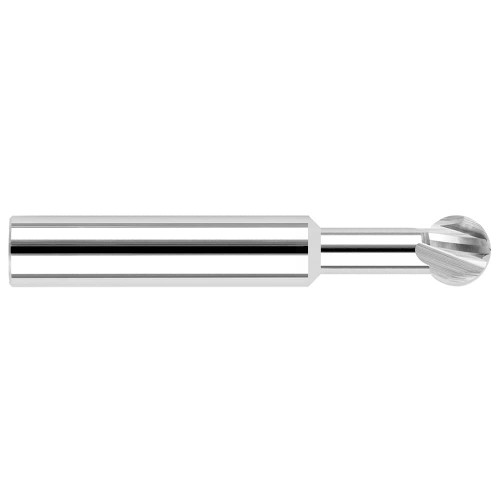

0.0312" (1/32) Cutter DIA x 0.0780" (5/64) Neck Length x 270° Carbide Undercutting End Mill, 2 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.04 Inch
Length of Cut
0.03 Inch
Shank Size
0.13 Inch
Overall Length
1.50 Inch
Coating/Finish
UN
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.02
Number of Flutes
2
Neck Length (Decimal)
0.08
Neck Length (Fractional)
5/64
Shank Size (Fractional)
1/8 Inch
Overall Reach (Decimal)
0.11
Diameter (Fractional)
1/32
Radius (Decimal)
0.02
Radius (Fractional)
1/64
Wrap Angle
270
HT - 39731
$91.10
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
