HT - 41430

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-41430
$125.60

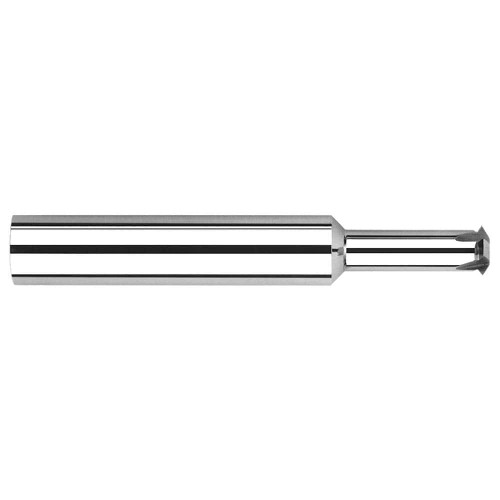

0.1200" Cutter DIA x 0.5000" (1/2) Reach Carbide Single Form #8 Thread Milling Cutter, 4 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.12 Inch
Length of Cut
0.03 Inch
Shank Size
0.25 Inch
Overall Length
2.50 Inch
Coating/Finish
UN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.07
Number of Flutes
4
Included Angle
60 degrees
Shank Size (Fractional)
1/4 Inch
Size
8
Angle per Side
30 degrees
Max Depth of Thread (Decimal)
0.50
Max Depth of Thread (Fractional)
1/2
HT - 41430
$125.60
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
