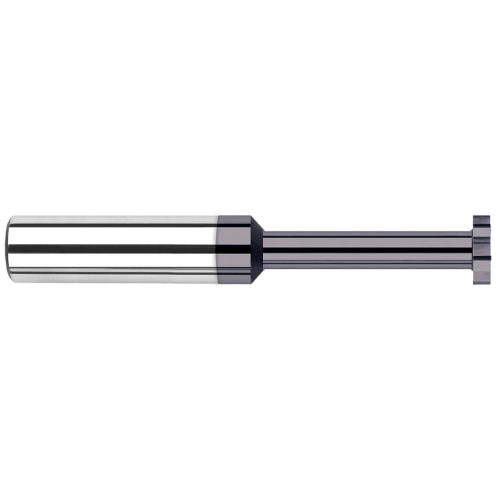

Harvey Tool Keyseat Cutter: 3/16" Dia, 1/64" Width, 6 Flute, AlTiN, 43715-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-43715-C3
$94.40

Harvey Tool keyseat cutter, 6 flutes, square end. Solid carbide, AlTiN coating. Manufacturer part number 43715-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1875
Shank Diameter (Decimal)
0.1875
Overall Length (Decimal)
2.0000
Coating/Finish
AlTiN
Type
I
Neck Diameter (Decimal)
0.0930
Number of Flutes
6
Neck Length (Decimal)
0.5620
Neck Length (Fractional)
9/16
Shank Diameter (Fractional)
3/16
Neck Diameter (Fractional)
3/32
Cutting Diameter (Fractional)
3/16
Reach Multiple
3x
Cutter Width (Decimal)
0.0150
Cutter Width (Fractional)
1/64
Radial Depth of Cut (Decimal)
0.0370
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
Material
Solid Carbide
Overall Length (Fractional)
2
Size System
Fractional
Harvey Tool Keyseat Cutter: 3/16" Dia, 1/64" Width, 6 Flute, AlTiN, 43715-C3
$94.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
