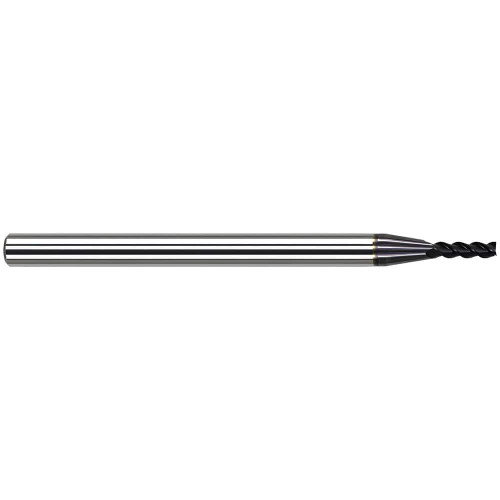

Harvey Tool Corner Radius End Mill: .035" Dia, .105" LOC, 1-1/2" OAL, .005" Corner Radius, 3 Flute, AlTiN, 45635-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-45635-C3
$50.30

Harvey Tool corner radius end mill for steel and stainless steel, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 45635-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0350
Length of Cut (Decimal)
0.1050
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
1-1/2
Corner Radius (Decimal)
0.0050
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Cutting Diameter (Metric)
0.90
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
3xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Corner Radius End Mill: .035" Dia, .105" LOC, 1-1/2" OAL, .005" Corner Radius, 3 Flute, AlTiN, 45635-C3
$50.30
