HT - 45804-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-45804-C3
$99.10

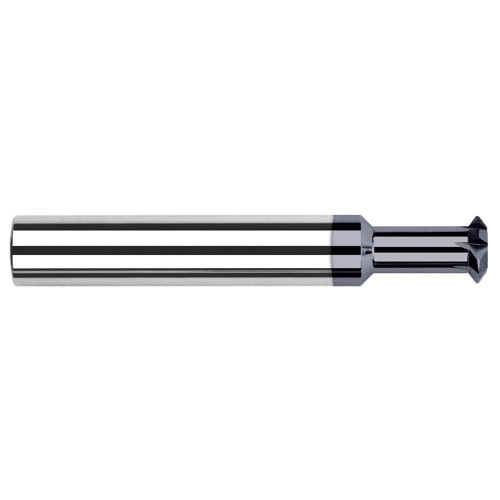

0.0620" (1/16) Cutter DIA x 0.0050" Radius x 0.0350" Width x 0.0930" (3/32) Neck Length Carbide Double Angle Shank Cutter, 2 Flutes, AlTiN Coated

Specifications

Unit of Measure
Imperial
Diameter
0.07 Inch
Shank Size
0.13 Inch
Overall Length
1.50 Inch
Coating/Finish
C3
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.04
Number of Flutes
2
Included Angle
90 degrees
Neck Length (Decimal)
0.10
Neck Length (Fractional)
3/32
Shank Size (Fractional)
1/8 Inch
Neck Diameter (Fractional)
1/32
Diameter (Fractional)
1/16
Radius (Decimal)
0.005
Angle per Side
45 degrees
Cutter Width
0.04 Inch
HT - 45804-C3
$99.10
