Harvey Tool Drill Mill: 9/64" Dia, 9/16" LOC, 2" OAL, 90° Included, 2 Flute, AlTiN, 46509-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-46509-C3
$60.30

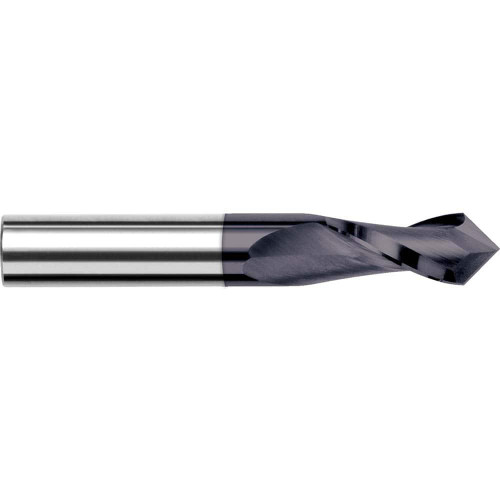

Harvey Tool drill mill, 2 flutes, 90 degree point, drill style end. Solid carbide, AlTiN coating. Manufacturer part number 46509-C3.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.5620
Shank Diameter (Decimal)
0.1875
Overall Length (Decimal)
2.0000
Coating/Finish
AlTiN
Length of Cut (Fractional)
9/16
Point Angle
90 degrees
Number of Flutes
2
Included Angle
90 degrees
Cutting Diameter (Fractional)
9/64
Shank Diameter (Fractional)
3/16
Cutting Diameter (Decimal)
0.1406
Overall Length (Fractional)
2
Web Thickness (Decimal)
0.0060
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Drill Style
LxD Ratio
4xD
Material
Solid Carbide
Size System
Fractional
Harvey Tool Drill Mill: 9/64" Dia, 9/16" LOC, 2" OAL, 90° Included, 2 Flute, AlTiN, 46509-C3
$60.30
