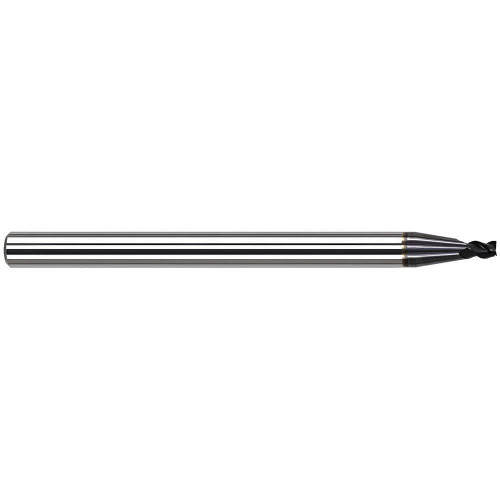

Harvey Tool Corner Radius End Mill: .045" Dia, .135" LOC, 1-1/2" OAL, .005" Corner Radius, 3 Flute, AlTiN Nano, 46845-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-46845-C6
$51.60

Harvey Tool corner radius end mill for high-temp alloys, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 46845-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0450
Length of Cut (Decimal)
0.1350
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
1-1/2
Corner Radius (Decimal)
0.0050
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
3xD
Material
Solid Carbide
Maximum Workpiece Hardness
45 HRC
Secondary Workpiece Material
Steel, Stainless Steel
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
High-Temp Alloy
Harvey Tool Corner Radius End Mill: .045" Dia, .135" LOC, 1-1/2" OAL, .005" Corner Radius, 3 Flute, AlTiN Nano, 46845-C6
$51.60
