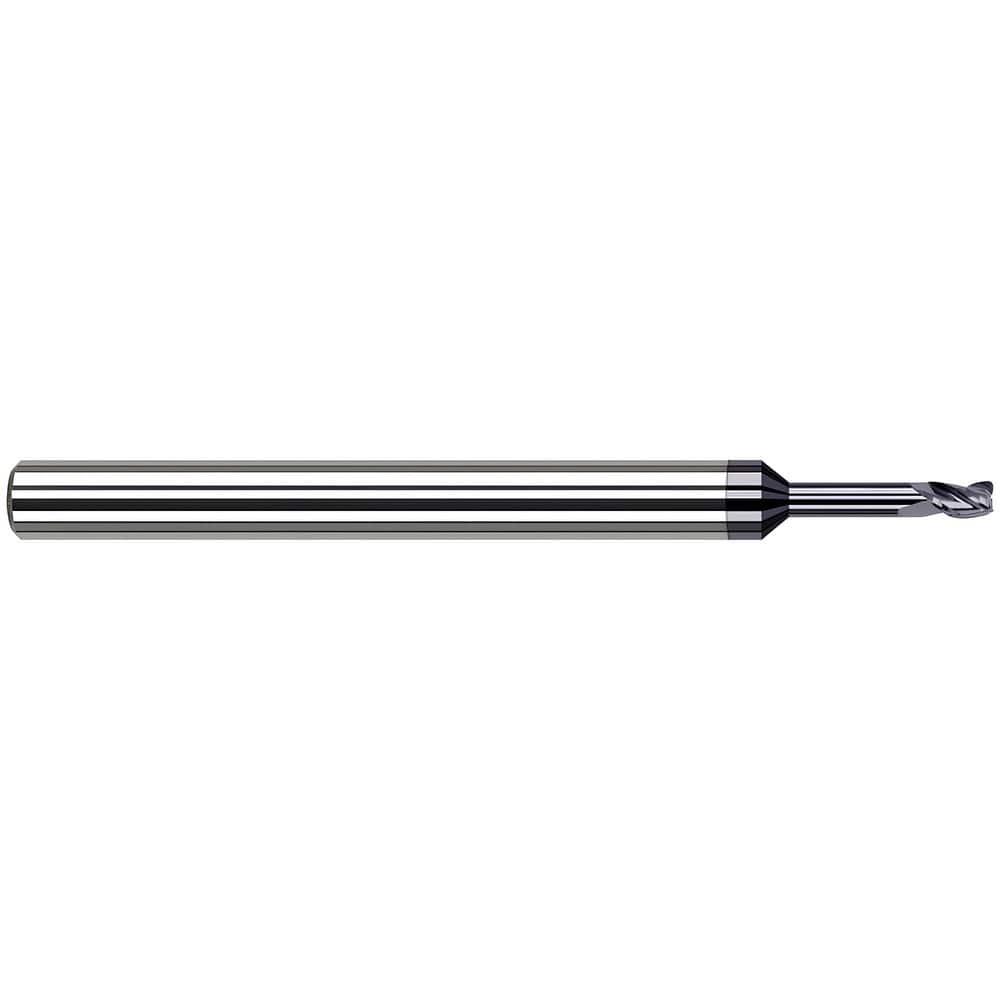

Harvey Tool Corner Radius End Mill: .025" Dia, 1/8" LOC, 2-1/2" OAL, .004" Corner Radius, 3 Flute, AlTiN, 53825-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-53825-C3
$71.90

Harvey Tool corner radius end mill for steel and stainless steel, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 53825-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0250
Length of Cut (Decimal)
0.1250
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
1/8
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0040
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
5xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Corner Radius End Mill: .025" Dia, 1/8" LOC, 2-1/2" OAL, .004" Corner Radius, 3 Flute, AlTiN, 53825-C3
$71.90
