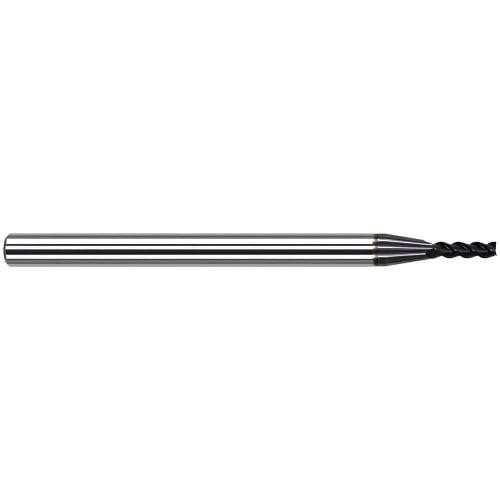

Harvey Tool Corner Radius End Mill: 3/16" Dia, 1" LOC, 3" OAL, 1/64" Corner Radius, 4 Flute, AlTiN, 53912-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-53912-C3
$65.80

Harvey Tool corner radius end mill for steel and stainless steel, 4 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 53912-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1875
Length of Cut (Decimal)
1.0000
Shank Diameter (Decimal)
0.1875
Overall Length (Decimal)
3.0000
Coating/Finish
AlTiN
Corner Radius (Decimal)
0.0150
Number of Flutes
4
Corner Radius (Fractional)
1/64
Shank Diameter (Fractional)
3/16
Cutting Diameter (Fractional)
3/16
Length of Cut (Fractional)
1
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
LxD Ratio
5xD
Material
Solid Carbide
Overall Length (Fractional)
3
Shank Tolerance
h6
Size System
Fractional
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Corner Radius End Mill: 3/16" Dia, 1" LOC, 3" OAL, 1/64" Corner Radius, 4 Flute, AlTiN, 53912-C3
$65.80
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
