HT - 54202-C4

Name: HT - 54202-C4
Brand: Harvey Tool
SKU: HAR-54202-C4
Price: 150.1 USD
Availability: InStock

Harvey Tool

No reviews yet Write a Review

$150.10

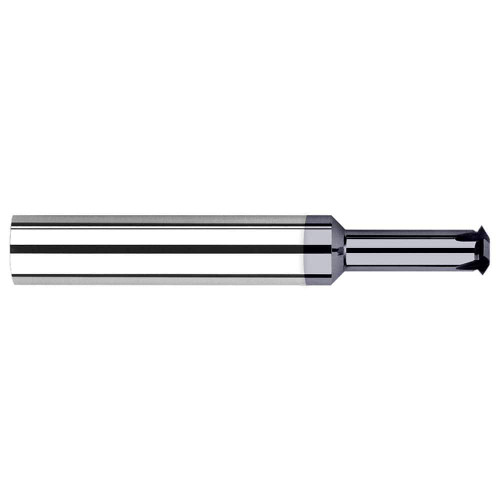

0.0440" Cutter DIA x 0.1870" (3/16) Reach Carbide Single Form #0 Thread Milling Cutter, 2 Flutes, Amorphous Diamond Coated

Unit of Measure

Imperial

Diameter

0.05 Inch

Length of Cut

0.02 Inch

Shank Size

0.13 Inch

Overall Length

1.50 Inch

Coating/Finish

Overall Length (Fractional)

1-1/2

Neck Diameter (Decimal)

0.03

Number of Flutes

Included Angle

60 degrees

Shank Size (Fractional)

1/8 Inch

Size

Angle per Side

30 degrees

Max Depth of Thread (Decimal)

0.19

Max Depth of Thread (Fractional)

3/16

$150.10

Request a Quote

Buying in volume or need custom terms? Request a Quote.
