HT - 57120-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-57120-C3
$97.60

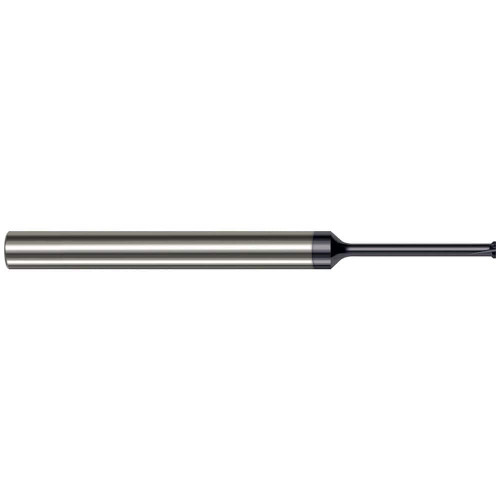

0.1350" Head DIA x 1.1250" (1-1/8) Neck Length x 45° per side Carbide Back Deburring Mill, 5 Flutes, AlTiN Coated

Specifications

Unit of Measure
Imperial
Length of Cut
0.02 Inch
Shank Size
0.19 Inch
Overall Length
2.50 Inch
Coating/Finish
C3
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.11
Number of Flutes
5
Included Angle
90 degrees
Neck Length (Decimal)
1.13
Neck Length (Fractional)
1-1/8
Shank Size (Fractional)
3/16 Inch
Angle per Side
45 degrees
End Length (Decimal)
0.06
Head Diameter (Decimal)
0.14
Chamfer Center Diameter
0.12
Chamfer Center Length (Decimal)
0.07
HT - 57120-C3
$97.60
