HT - 57130

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-57130
$89.00

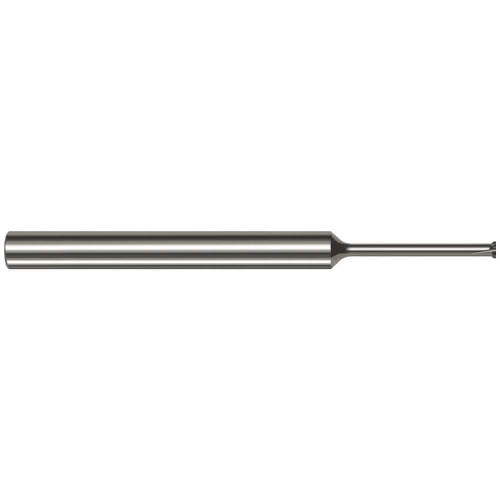

0.1650" Head DIA x 1.3750" (1-3/8) Neck Length x 45° per side Carbide Back Deburring Mill, 6 Flutes

Specifications

Unit of Measure
Imperial
Length of Cut
0.02 Inch
Shank Size
0.19 Inch
Overall Length
2.50 Inch
Coating/Finish
UN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.13
Number of Flutes
6
Included Angle
90 degrees
Neck Length (Decimal)
1.38
Neck Length (Fractional)
1-3/8
Shank Size (Fractional)
3/16 Inch
Angle per Side
45 degrees
End Length (Decimal)
0.06
Head Diameter (Decimal)
0.17
Chamfer Center Diameter
0.15
Chamfer Center Length (Decimal)
0.07
HT - 57130
$89.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
