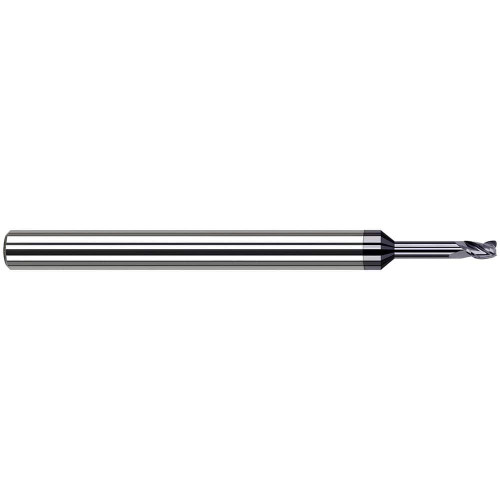

Harvey Tool Corner Radius End Mill: .040" Dia, .060" LOC, 2-1/2" OAL, .005" Corner Radius, 13/64" Reach, 3 Flute, AlTiN, 62440-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-62440-C3
$80.10

Harvey Tool corner radius end mill for steel and stainless steel, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 62440-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0400
Length of Cut (Decimal)
0.0600
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0050
Neck Diameter (Decimal)
0.0385
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Decimal
Center Cutting
Yes
Reach (Decimal)
0.2030
Reach Multiple
5x
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
13/64
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Corner Radius End Mill: .040" Dia, .060" LOC, 2-1/2" OAL, .005" Corner Radius, 13/64" Reach, 3 Flute, AlTiN, 62440-C3
$80.10
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
