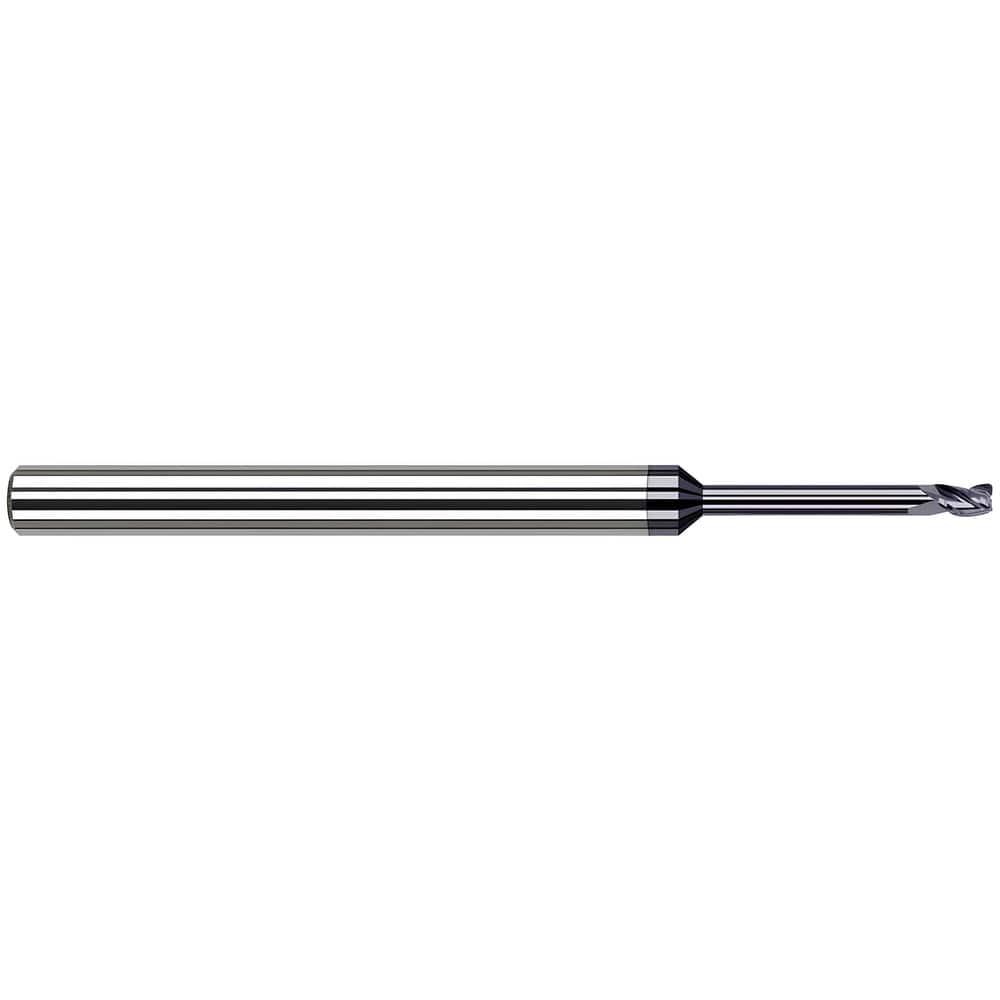

Harvey Tool Corner Radius End Mill: .025" Dia, .038" LOC, 2-1/2" OAL, .004" Corner Radius, 5/16" Reach, 3 Flute, AlTiN, 63825-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-63825-C3
$95.80

Harvey Tool corner radius end mill for steel and stainless steel, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 63825-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0250
Length of Cut (Decimal)
0.0380
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0040
Neck Diameter (Decimal)
0.0240
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Neck Diameter (Metric)
0.60
Size System
Decimal
Center Cutting
Yes
Reach Multiple
12x
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
0.3120
Reach (Fractional)
5/16
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Steel, Stainless Steel
Harvey Tool Corner Radius End Mill: .025" Dia, .038" LOC, 2-1/2" OAL, .004" Corner Radius, 5/16" Reach, 3 Flute, AlTiN, 63825-C3
$95.80
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
