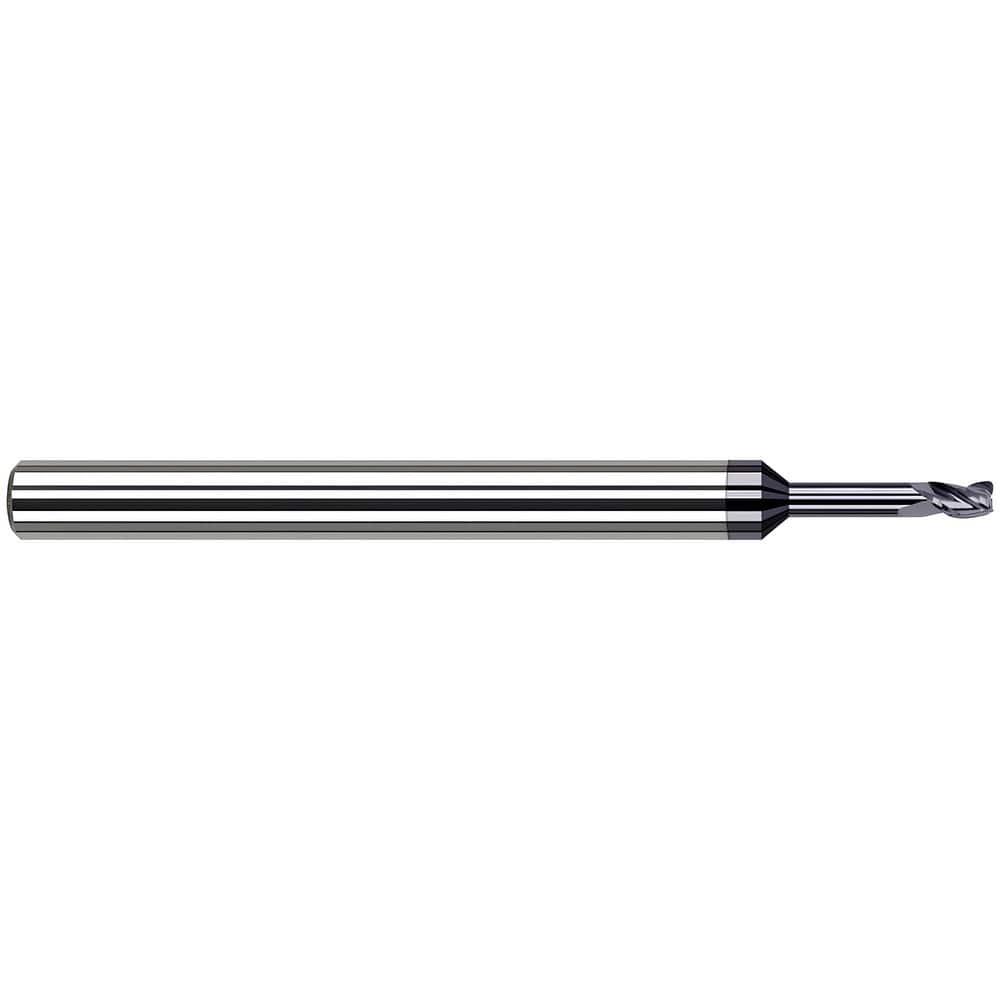

Harvey Tool Corner Radius End Mill: 1/64" Dia, .023" LOC, 2-1/2" OAL, .003" Corner Radius, 5/64" Reach, 3 Flute, AlTiN Nano, 64415-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-64415-C6
$93.30

Harvey Tool corner radius end mill for high-temp alloys, 3 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 64415-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0150
Length of Cut (Decimal)
0.0230
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0030
Neck Diameter (Decimal)
0.0142
Number of Flutes
3
Shank Diameter (Fractional)
1/8
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/64
Reach (Decimal)
0.0780
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
Maximum Workpiece Hardness
45 HRC
Reach (Fractional)
5/64
Secondary Workpiece Material
Steel, Stainless Steel
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
High-Temp Alloy
Harvey Tool Corner Radius End Mill: 1/64" Dia, .023" LOC, 2-1/2" OAL, .003" Corner Radius, 5/64" Reach, 3 Flute, AlTiN Nano, 64415-C6
$93.30
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
