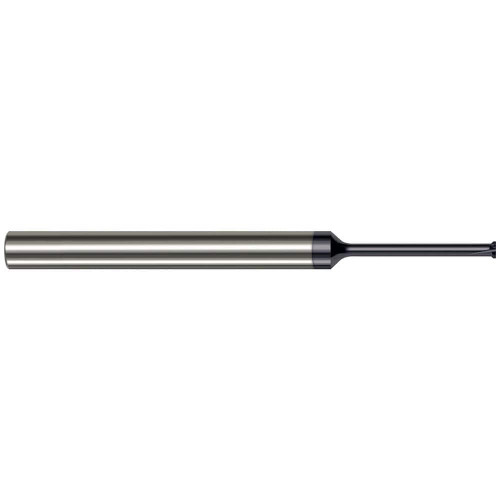

Harvey Tool Cutter: .0045" LOC, 2" OAL, 4 Flute, AlTiN, 65755-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-65755-C3
$103.20

Harvey Tool cutter, 4 flutes, back chamfer end. Solid carbide, AlTiN coating. Manufacturer part number 65755-C3.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0045
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.0000
Coating/Finish
AlTiN
Neck Diameter (Decimal)
0.0430
Number of Flutes
4
Included Angle
90 degrees
Neck Length (Decimal)
0.2810
Neck Length (Fractional)
9/32
Shank Diameter (Fractional)
1/8
Angle per Side
45 degrees
End Length (Decimal)
0.0400
Head Diameter (Decimal)
0.0550
Head Diameter (Metric)
1.40
Chamfer Center Diameter (Decimal)
0.0515
Chamfer Center Length (Decimal)
0.0423
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
End Type
Back Chamfer
Material
Solid Carbide
Neck Diameter (Metric)
1.10
Overall Length (Fractional)
2
Harvey Tool Cutter: .0045" LOC, 2" OAL, 4 Flute, AlTiN, 65755-C3
$103.20
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
