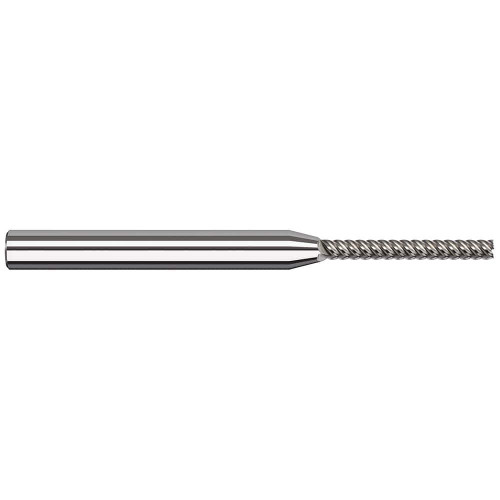

Harvey Tool Square End Mill: 5/64" Dia, 5/8" LOC, 2-1/2" OAL, 5 Flute, Uncoated, 67178

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-67178
$63.20

Harvey Tool square end mill for non-ferrous metals, 5 flutes, variable helix. Solid carbide, uncoated. Manufacturer part number 67178.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0780
Length of Cut (Decimal)
0.6250
Shank Diameter (Decimal)
0.1250
Number of Flutes
5
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
5/8
Overall Length (Fractional)
2-1/2
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
5/64
Size System
Fractional
Center Cutting
No
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
8xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Non-Ferrous
