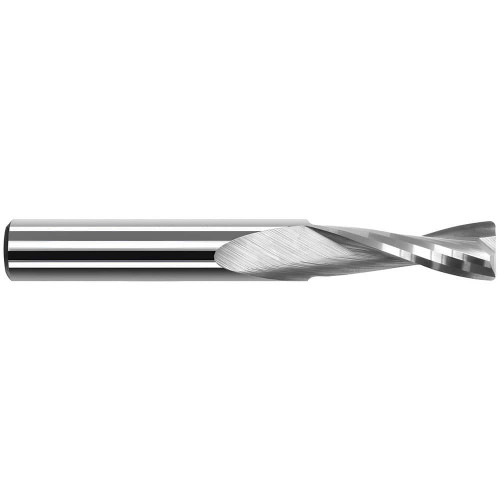

Harvey Tool Corner Radius End Mill: 3/32" Dia, .279" LOC, 1-1/2" OAL, .020" Corner Radius, 2 Flute, Uncoated, 69893

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-69893
$51.60

Harvey Tool corner radius end mill for plastics, 2 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 69893.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0938
Length of Cut (Decimal)
0.2790
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
1-1/2
Corner Radius (Decimal)
0.0200
Number of Flutes
2
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
3/32
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
LxD Ratio
3xD
Material
Solid Carbide
Workpiece Material
Plastics
Harvey Tool Corner Radius End Mill: 3/32" Dia, .279" LOC, 1-1/2" OAL, .020" Corner Radius, 2 Flute, Uncoated, 69893
$51.60
