HT - 71060

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-71060
$153.30

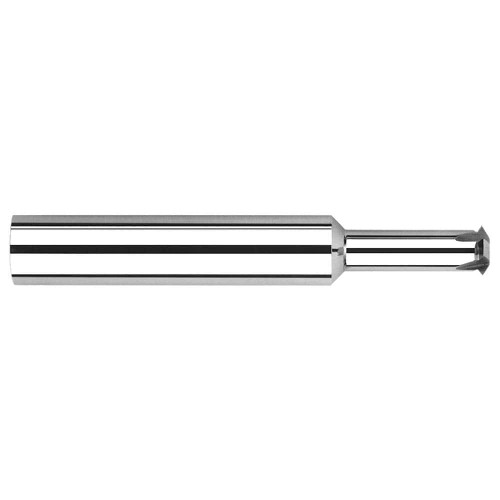

0.3000" Cutter DIA x 0.7500" (3/4) Reach Carbide Single Form #3/8 Thread Milling Cutter, 4 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.30 Inch
Length of Cut
0.05 Inch
Shank Size
0.38 Inch
Overall Length
2.50 Inch
Coating/Finish
UN
Length of Cut (Fractional)
3/64
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.22
Number of Flutes
4
Included Angle
60 degrees
Shank Size (Fractional)
3/8 Inch
Neck Diameter (Fractional)
7/32
Size
3/8
Angle per Side
30 degrees
Max Depth of Thread (Decimal)
0.75
Max Depth of Thread (Fractional)
3/4
HT - 71060
$153.30
