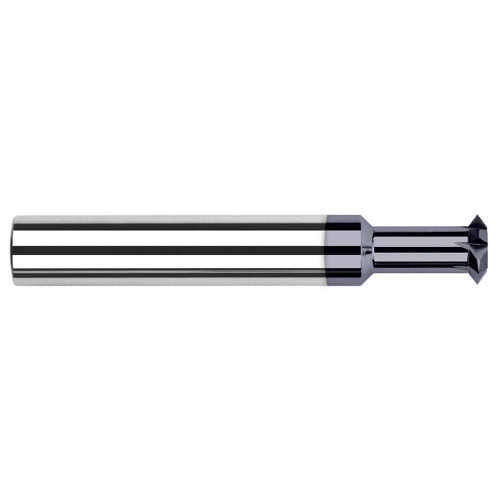

Harvey Tool Cutter: 3/8" Dia, 2-1/2" OAL, 6 Flute, AlTiN, 72605-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-72605-C3
$151.40

Harvey Tool cutter, 6 flutes, pointed end. Solid carbide, AlTiN coating. Manufacturer part number 72605-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.3750
Shank Diameter (Decimal)
0.3750
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.2500
Type
I
Number of Flutes
6
Included Angle
90 degrees
Neck Length (Decimal)
1.0000
Neck Length (Fractional)
1
Shank Diameter (Fractional)
3/8
Neck Diameter (Fractional)
1/4
Cutting Diameter (Fractional)
3/8
Angle per Side
45 degrees
Cutter Width (Decimal)
0.1250
Cutter Width (Fractional)
1/8
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Pointed
Material
Solid Carbide
Harvey Tool Cutter: 3/8" Dia, 2-1/2" OAL, 6 Flute, AlTiN, 72605-C3
$151.40
