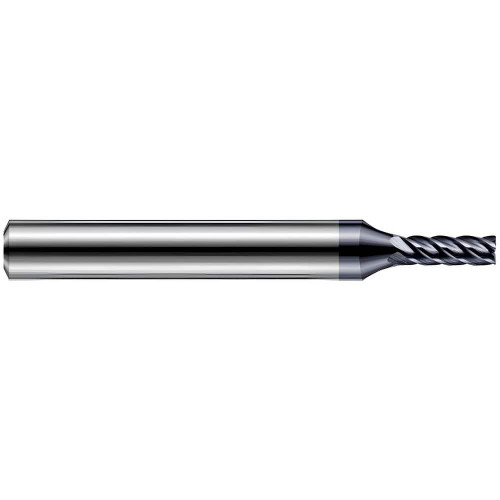

Harvey Tool Corner Radius End Mill: 1/64" Dia, .045" LOC, 2-1/2" OAL, .003" Corner Radius, 5 Flute, AlTiN Nano, 760415-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-760415-C6
$99.50

Harvey Tool corner radius end mill for hardened steel, 5 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 760415-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0150
Length of Cut (Decimal)
0.0450
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0030
Number of Flutes
5
Shank Diameter (Fractional)
1/4
Cutting Diameter (Fractional)
1/64
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
3xD
Material
Solid Carbide
Maximum Workpiece Hardness
55 HRC
Secondary Workpiece Material
Stainless Steel, High-Temp Alloy
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Hardened Steel
Harvey Tool Corner Radius End Mill: 1/64" Dia, .045" LOC, 2-1/2" OAL, .003" Corner Radius, 5 Flute, AlTiN Nano, 760415-C6
$99.50
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
