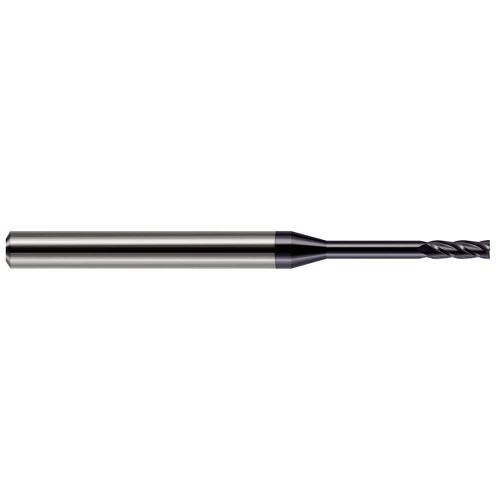

Harvey Tool Square End Mill: .030" Dia, .090" LOC, 1-1/2" OAL, .270" Reach, 4 Flute, AlTiN, 76430-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-76430-C3
$61.90

Harvey Tool square end mill, 4 flutes, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 76430-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0300
Length of Cut (Decimal)
0.0900
Shank Diameter (Decimal)
0.1250
Number of Flutes
4
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
1-1/2
Neck Diameter (Decimal)
0.0290
Neck Length (Decimal)
0.1800
Shank Diameter (Fractional)
1/8
Size System
Decimal
Center Cutting
Yes
Reach Multiple
9x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Reach (Decimal)
0.2700
Harvey Tool Square End Mill: .030" Dia, .090" LOC, 1-1/2" OAL, .270" Reach, 4 Flute, AlTiN, 76430-C3
$61.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
