HT - 771810

Name: HT - 771810
Brand: Harvey Tool
SKU: HAR-771810
Price: 134.5 USD
Availability: InStock

Harvey Tool

No reviews yet Write a Review

$134.50

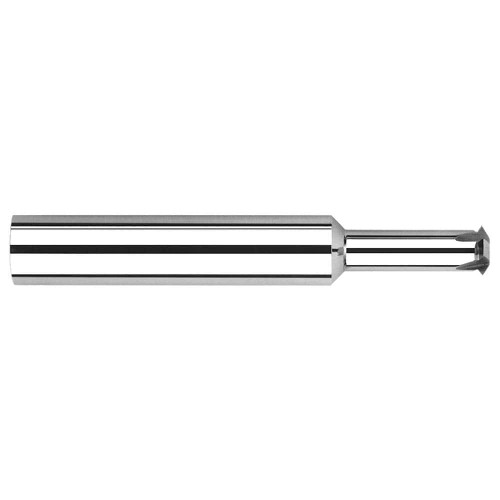

0.0800" Cutter DIA x 0.4370" (7/16) Reach Carbide Single Form #4 Thread Milling Cutter, 2 Flutes

Unit of Measure

Imperial

Diameter

0.08 Inch

Length of Cut

0.03 Inch

Shank Size

0.19 Inch

Overall Length

2 Inch

Coating/Finish

Neck Diameter (Decimal)

0.04

Number of Flutes

Included Angle

60 degrees

Shank Size (Fractional)

3/16 Inch

Size

Angle per Side

30 degrees

Max Depth of Thread (Decimal)

0.44

Max Depth of Thread (Fractional)

7/16

$134.50

Request a Quote

Buying in volume or need custom terms? Request a Quote.
