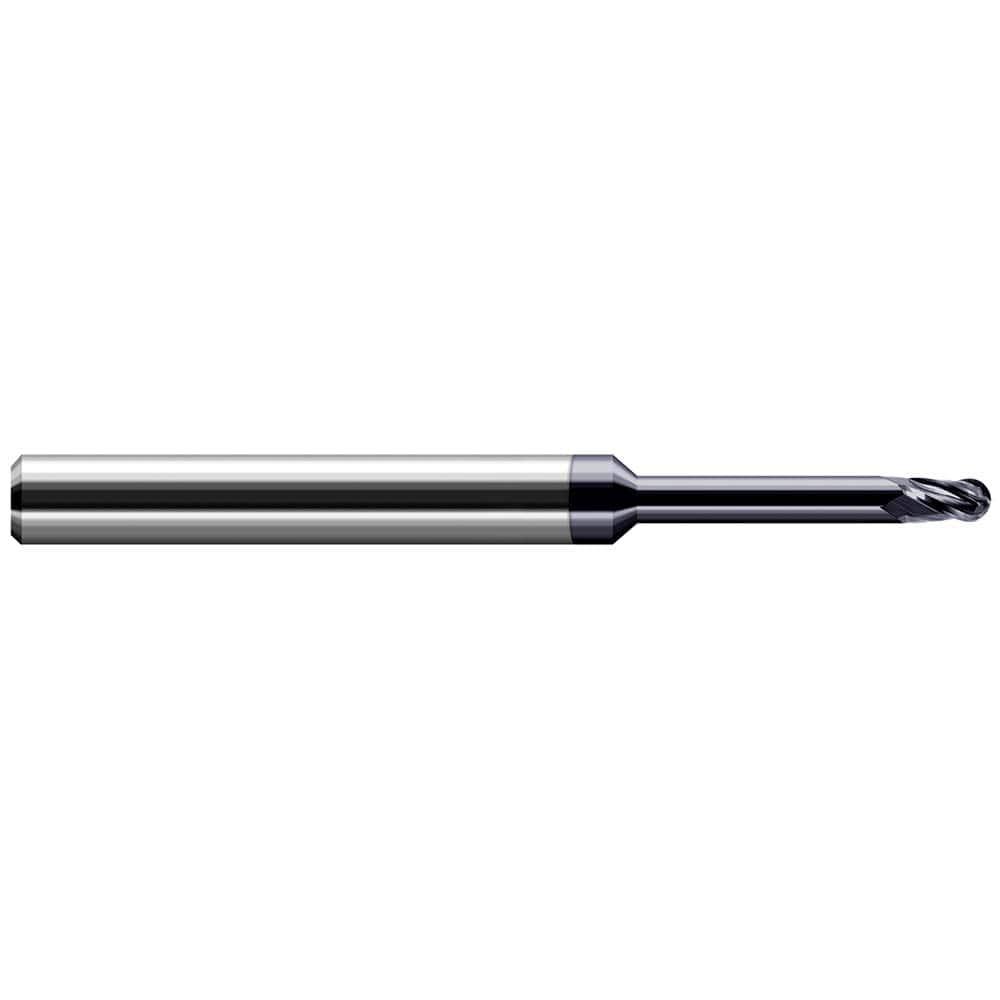

Harvey Tool Ball End Mill: 3/16" Dia, 9/32" LOC, 4" OAL, 1-1/2" Reach, 4 Flute, AlTiN Nano, 776312-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-776312-C6
$129.30

Harvey Tool ball end mill, 4 flutes, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 776312-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1875
Length of Cut (Decimal)
0.2810
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
4.0000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
9/32
Neck Diameter (Decimal)
0.2320
Number of Flutes
4
Neck Length (Decimal)
0.1875
Neck Length (Fractional)
3/16
Shank Diameter (Fractional)
1/4
Overall Length (Fractional)
4
Size System
Fractional
Cutting Diameter (Fractional)
3/16
Center Cutting
Yes
Minor Diameter (Decimal)
0.1770
Minor Diameter (Metric)
4.50
Neck Angle
2
Tapered Reach (Decimal)
1.2500
Tapered Reach (Fractional)
1-1/4
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
End Type
Ball
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
1.5000
Reach (Fractional)
1-1/2
Shank Tolerance
h6
