HT - 778012

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-778012
$78.00

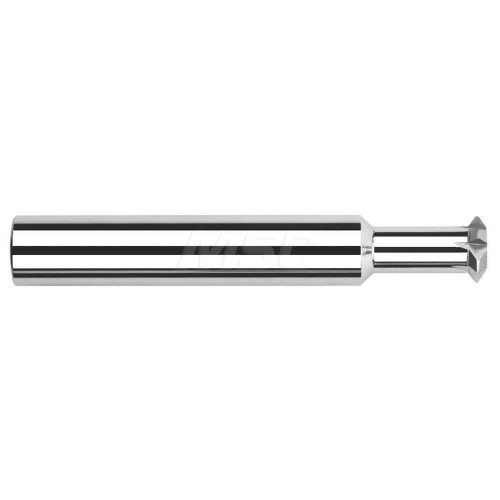

0.1875" (3/16) Cutter DIA x 0.0650" Width x 0.3120" (5/16) Neck Length Carbide Double Angle Shank Cutter, 4 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.19 Inch
Shank Size
0.19 Inch
Overall Length
2 Inch
Coating/Finish
UN
Neck Diameter (Decimal)
0.10
Number of Flutes
4
Included Angle
60 degrees
Neck Length (Decimal)
0.32
Neck Length (Fractional)
5/16
Shank Size (Fractional)
3/16 Inch
Neck Diameter (Fractional)
3/32
Diameter (Fractional)
3/16
Angle per Side
30 degrees
Tip Flat (Decimal)
0.01
Cutter Width
0.07 Inch
HT - 778012
$78.00
