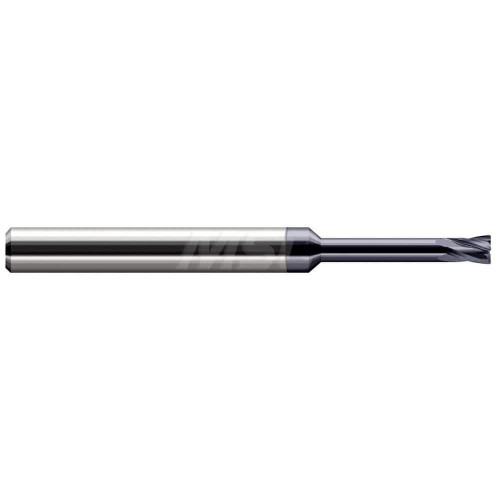

Harvey Tool Cutter: 3/32" Dia, .139" LOC, 2-1/2" OAL, 1/2" Reach, 4 Flute, AlTiN, 779193-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-779193-C3
$89.50

Harvey Tool cutter, 4 flutes, 20 degree helix, corner radius end, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 779193-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0930
Length of Cut (Decimal)
0.1390
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.0750
Corner Radius (Decimal)
0.0050
Number of Flutes
4
Included Angle
6.0 degrees
Shank Diameter (Fractional)
1/8
Neck Diameter (Metric)
1.90
Center Cutting
Yes
Cutting Diameter (Fractional)
3/32
Angle per Side
3 degrees
Reach (Decimal)
0.5000
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
Helix Angle
20 degrees
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Fractional)
1/2
Shank Tolerance
h6
Harvey Tool Cutter: 3/32" Dia, .139" LOC, 2-1/2" OAL, 1/2" Reach, 4 Flute, AlTiN, 779193-C3
$89.50
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
