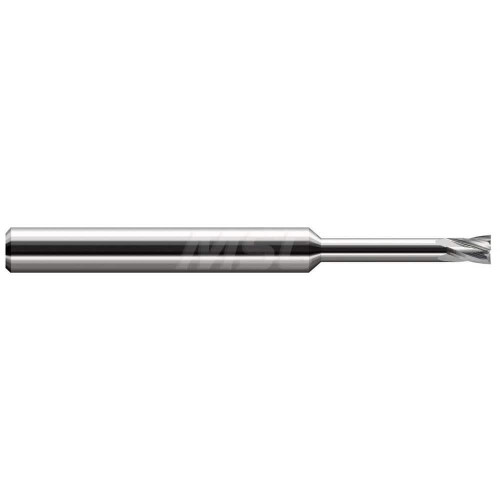

Harvey Tool Cutter: .187" Dia, .285" LOC, 2-1/2" OAL, 1" Reach, 4 Flute, Uncoated, 779612

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-779612
$86.40

Harvey Tool cutter, 4 flutes, 20 degree helix, square end, center cutting. Solid carbide, uncoated. Manufacturer part number 779612.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1870
Length of Cut (Decimal)
0.2850
Shank Diameter (Decimal)
0.1875
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.1490
Number of Flutes
4
Included Angle
6.0 degrees
Shank Diameter (Fractional)
3/16
Reach (Decimal)
1.0000
Reach (Fractional)
1
Center Cutting
Yes
Angle per Side
3 degrees
LxD Ratio
1.5xD
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
Helix Angle
20 degrees
Material
Solid Carbide
Shank Tolerance
h6
Harvey Tool Cutter: .187" Dia, .285" LOC, 2-1/2" OAL, 1" Reach, 4 Flute, Uncoated, 779612
$86.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
