HT - 779793

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-779793
$82.70

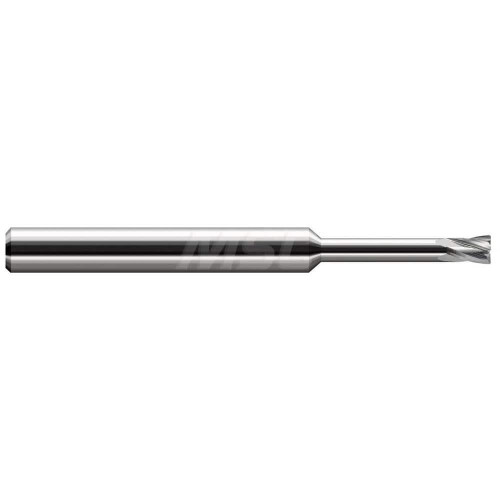

0.0930" (3/32) Cutter DIA x 0.0050" Radius x 0.1390" Length of Cut x 0.5000" (1/2) Reach Carbide Corner Radius Backdraft Cutter, 4 Flutes

Specifications

Unit of Measure
Imperial
Diameter
0.10 Inch
Length of Cut
0.14 Inch
Shank Size
0.13 Inch
Overall Length
2.50 Inch
Coating/Finish
UN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.09
Corner Radius (Decimal)
0.005
Number of Flutes
4
Included Angle
4.0 degrees
Shank Size (Fractional)
1/8 Inch
Overall Reach (Decimal)
0.50
Overall Reach (Fractional)
1/2
Diameter (Fractional)
3/32
Angle per Side
2 degrees
LOC Multiple
1.5x
Reach Multiple
5x
HT - 779793
$82.70
