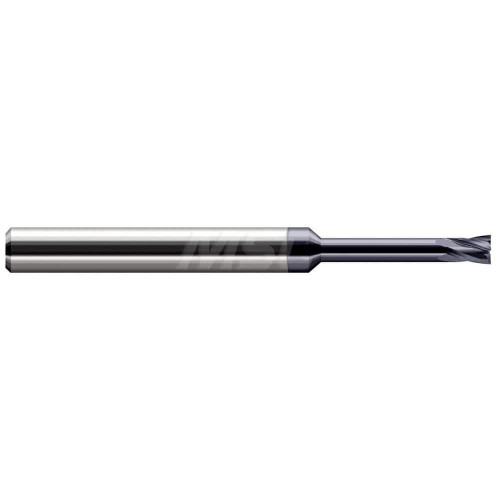

Harvey Tool Cutter: 1/8" Dia, 3/16" LOC, 2-1/2" OAL, 5/8" Reach, 4 Flute, AlTiN, 780808-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-780808-C3
$88.40

Harvey Tool cutter, 4 flutes, 20 degree helix, square end, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 780808-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1250
Length of Cut (Decimal)
0.1870
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
3/16
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.1130
Number of Flutes
4
Included Angle
2.0 degrees
Shank Diameter (Fractional)
1/8
Center Cutting
Yes
Reach (Decimal)
0.6250
Cutting Diameter (Fractional)
1/8
Angle per Side
1 degrees
Reach (Fractional)
5/8
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
Helix Angle
20 degrees
LxD Ratio
1.5xD
Material
Solid Carbide
Shank Tolerance
h6
Harvey Tool Cutter: 1/8" Dia, 3/16" LOC, 2-1/2" OAL, 5/8" Reach, 4 Flute, AlTiN, 780808-C3
$88.40
