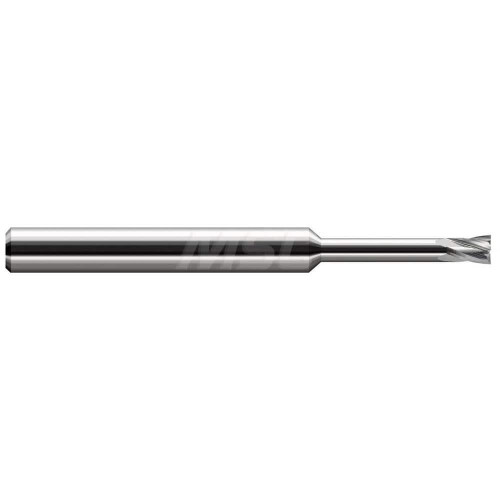

Harvey Tool Cutter: 1/4" Dia, 3/8" LOC, 2-1/2" OAL, 1-1/4" Reach, 4 Flute, Uncoated, 780816

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-780816
$97.00

Harvey Tool cutter, 4 flutes, 20 degree helix, square end, center cutting. Solid carbide, uncoated. Manufacturer part number 780816.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2500
Length of Cut (Decimal)
0.3750
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
3/8
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.2310
Number of Flutes
4
Included Angle
2.0 degrees
Shank Diameter (Fractional)
1/4
Center Cutting
Yes
Reach (Decimal)
1.2500
Cutting Diameter (Fractional)
1/4
Angle per Side
1 degrees
Reach (Fractional)
1-1/4
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Square
Helix Angle
20 degrees
LxD Ratio
1.5xD
Material
Solid Carbide
Shank Tolerance
h6
Harvey Tool Cutter: 1/4" Dia, 3/8" LOC, 2-1/2" OAL, 1-1/4" Reach, 4 Flute, Uncoated, 780816
$97.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
