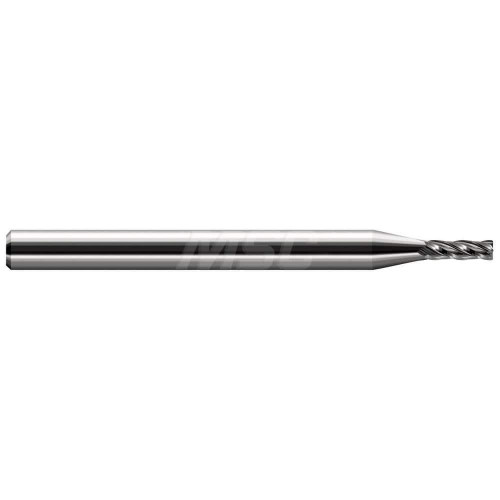

Harvey Tool Corner Radius End Mill: 1/32" Dia, 1/8" LOC, 2-1/2" OAL, .005" Corner Radius, 4 Flute, Uncoated, 787531

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-787531
$85.00

Harvey Tool corner radius end mill, 4 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 787531.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0310
Length of Cut (Decimal)
0.1250
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
2.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
1/8
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0050
Number of Flutes
4
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
1/32
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
4xD
Material
Solid Carbide
Harvey Tool Corner Radius End Mill: 1/32" Dia, 1/8" LOC, 2-1/2" OAL, .005" Corner Radius, 4 Flute, Uncoated, 787531
$85.00
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
