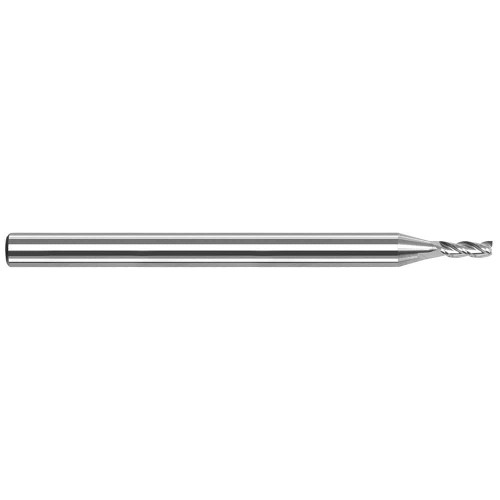

Harvey Tool Square End Mill: 5/64" Dia, 15/64" LOC, 1-1/2" OAL, 2 Flute, Uncoated, 792178

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-792178
$38.80

Harvey Tool square end mill for non-ferrous metals, 2 flutes, variable helix, center cutting. Solid carbide, uncoated. Manufacturer part number 792178.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0780
Length of Cut (Decimal)
0.2340
Shank Diameter (Decimal)
0.1250
Number of Flutes
2
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Length of Cut (Fractional)
15/64
Overall Length (Fractional)
1-1/2
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
5/64
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Square
LxD Ratio
3xD
Material
Solid Carbide
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Non-Ferrous
Harvey Tool Square End Mill: 5/64" Dia, 15/64" LOC, 1-1/2" OAL, 2 Flute, Uncoated, 792178
$38.80
