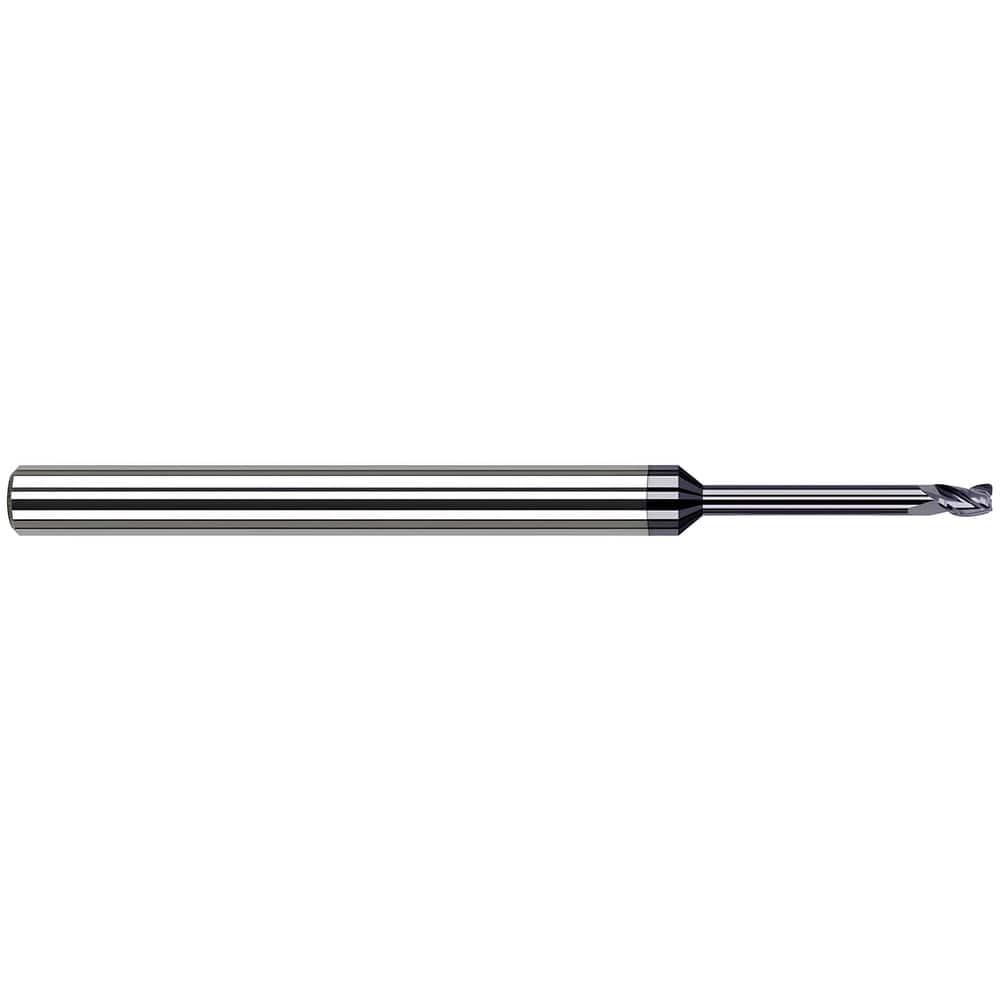

Harvey Tool Corner Radius End Mill: 1/8" Dia, 3/16" LOC, 2-1/2" OAL, .005" Corner Radius, 5/8" Reach, 5 Flute, AlTiN Nano, 812808-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-812808-C6
$116.70

Harvey Tool corner radius end mill for hardened steel, 5 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 812808-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1250
Length of Cut (Decimal)
0.1870
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
3/16
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0050
Neck Diameter (Decimal)
0.1210
Number of Flutes
5
Shank Diameter (Fractional)
1/4
Size System
Fractional
Center Cutting
Yes
Cutting Diameter (Fractional)
1/8
Reach (Decimal)
0.6250
Reach Multiple
5x
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
Maximum Workpiece Hardness
55 HRC
Reach (Fractional)
5/8
Secondary Workpiece Material
Stainless Steel, High-Temp Alloy
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Hardened Steel
Harvey Tool Corner Radius End Mill: 1/8" Dia, 3/16" LOC, 2-1/2" OAL, .005" Corner Radius, 5/8" Reach, 5 Flute, AlTiN Nano, 812808-C6
$116.70
