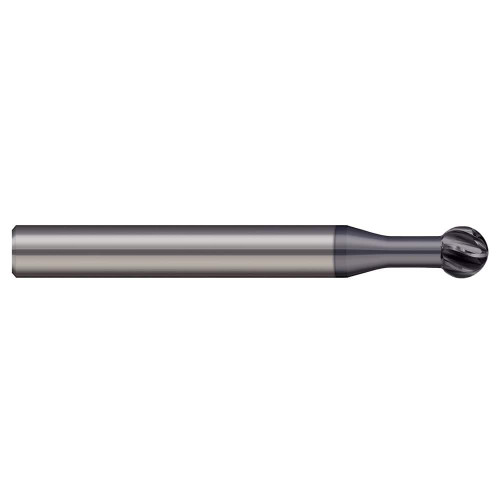

Harvey Tool Cutter: 3/8" Dia, .320" LOC, 2-1/2" OAL, .695" Reach, 8 Flute, AlTiN Nano, 823324-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-823324-C6
$147.50

Harvey Tool cutter, 8 flutes, spherical end, center cutting, external coolant. Solid carbide, AlTiN Nano coating. Manufacturer part number 823324-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.3750
Length of Cut (Decimal)
0.3200
Shank Diameter (Decimal)
0.3750
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.2410
Number of Flutes
8
Neck Length (Decimal)
0.3750
Neck Length (Fractional)
3/8
Shank Diameter (Fractional)
3/8
Center Cutting
Yes
Cutting Diameter (Fractional)
3/8
Coolant Option
External Coolant
Radius (Decimal)
0.1875
Radius (Fractional)
3/16
Wrap Angle
270
Chip Breaker
No
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
Double Ended
No
End Type
Spherical
Material
Solid Carbide
Maximum Workpiece Hardness
68 HRC
Reach (Decimal)
0.6950
Harvey Tool Cutter: 3/8" Dia, .320" LOC, 2-1/2" OAL, .695" Reach, 8 Flute, AlTiN Nano, 823324-C6
$147.50
