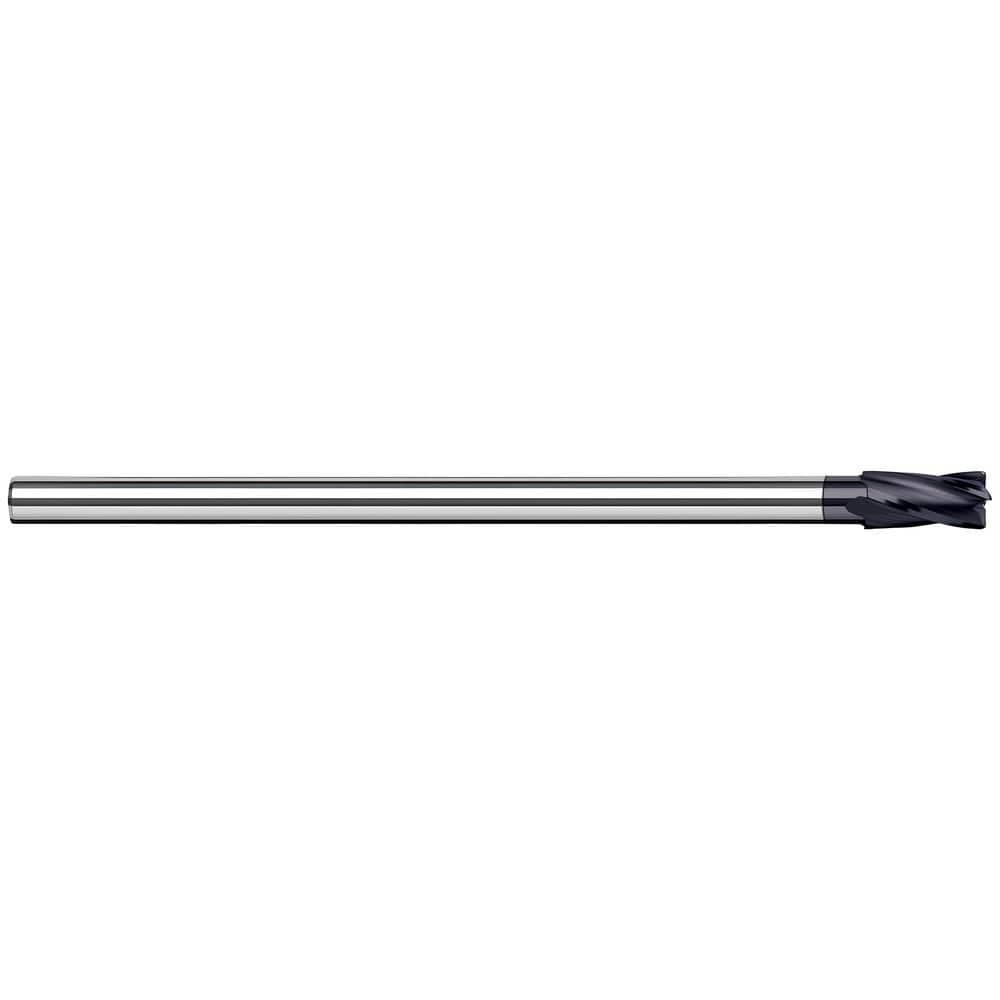

Harvey Tool Corner Radius End Mill: 1/2" Dia, 3/4" LOC, 6" OAL, 1/64" Corner Radius, 4 Flute, Uncoated, 829032

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-829032
$342.60

Harvey Tool corner radius end mill, 4 flutes, center cutting. Solid carbide, uncoated. Manufacturer part number 829032.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.5000
Length of Cut (Decimal)
0.7500
Shank Diameter (Decimal)
0.4375
Overall Length (Decimal)
6.0000
Coating/Finish
Uncoated
Length of Cut (Fractional)
3/4
Corner Radius (Decimal)
0.0150
Number of Flutes
4
Corner Radius (Fractional)
1/64
Shank Diameter (Fractional)
7/16
Cutting Diameter (Fractional)
1/2
Overall Length (Fractional)
6
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
Shank Tolerance
h6
Size System
Fractional
Harvey Tool Corner Radius End Mill: 1/2" Dia, 3/4" LOC, 6" OAL, 1/64" Corner Radius, 4 Flute, Uncoated, 829032
$342.60
