HT - 830040-C8

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-830040-C8
$310.40

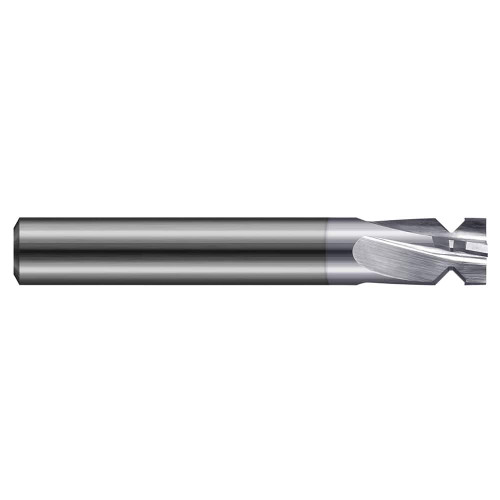

0.6250" (5/8) Cutter DIA x 0.3770" Length of Cut Carbide Picatinny Rail Form Cutters, 4 Flutes, TiB2 Coated

Specifications

Unit of Measure
Imperial
Diameter
0.63 Inch
Length of Cut
0.38 Inch
Shank Size
0.63 Inch
Overall Length
2.50 Inch
Coating/Finish
C8
Overall Length (Fractional)
2-1/2
Type
II
Number of Flutes
4
Included Angle
90 degrees
Shank Size (Fractional)
5/8 Inch
Diameter (Fractional)
5/8
Radius (Decimal)
0.005
Angle per Side
45 degrees
Minor Diameter (Decimal)
0.41
End Length (Decimal)
0.14
Min Opening Width (Decimal)
0.02 Inch
HT - 830040-C8
$310.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
