HT - 836798-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-836798-C6
$545.50

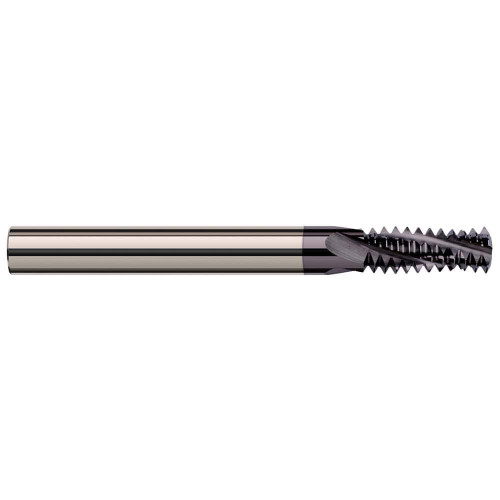

0.4950" Cutter DIA x 1.2500" (1-1/4) Length of Cut Carbide Multi-Form 3/4-16 Thread Milling Cutter for Hardened Steels, 4 Flutes, AlTiN Nano Coated

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.4950
Length of Cut (Decimal)
1.2500
Shank Diameter (Decimal)
0.5000
Overall Length (Decimal)
3.5000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
1-1/4
Overall Length (Fractional)
3-1/2
Number of Flutes
4
Included Angle
60 degrees
Shank Diameter (Fractional)
1/2
Coolant Option
External Coolant
Thread Size
3/4-16
Center Cutting
No
Chip Breaker
No
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Double Ended
No
Material
Solid Carbide
Maximum Workpiece Hardness
68 HRC
Thread Pitch (TPI)
16
Variable Helix
Yes
HT - 836798-C6
$545.50
