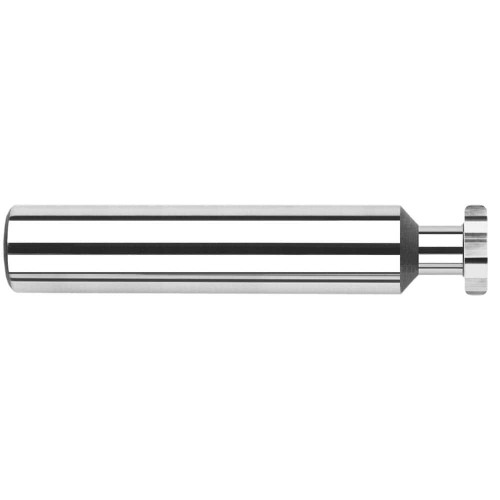

Harvey Tool Keyseat Cutter: 1/8" Dia, 1/32" Width, 6 Flute, Uncoated, 837631

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-837631
$100.10

Harvey Tool keyseat cutter, 6 flutes, corner radius end. Solid carbide, uncoated. Manufacturer part number 837631.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.1250
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
Uncoated
Overall Length (Fractional)
1-1/2
Type
II
Corner Radius (Decimal)
0.0100
Neck Diameter (Decimal)
0.0400
Number of Flutes
6
Neck Length (Decimal)
0.0620
Neck Length (Fractional)
1/16
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
1/8
Reach Multiple
0.5x
Cutter Width (Decimal)
0.0310
Cutter Width (Fractional)
1/32
Radial Depth of Cut (Decimal)
0.0320
Top Corner Radius
0.01
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Corner Radius
Material
Solid Carbide
Size System
Fractional
Harvey Tool Keyseat Cutter: 1/8" Dia, 1/32" Width, 6 Flute, Uncoated, 837631
$100.10
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
