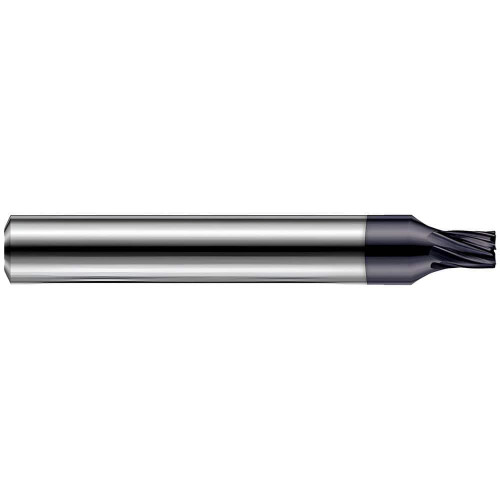

Harvey Tool Corner Radius End Mill: 1/16" Dia, 5/16" LOC, 2-1/2" OAL, .005" Corner Radius, 7 Flute, AlTiN Nano, 845262-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-845262-C6
$116.30

Harvey Tool corner radius end mill for hardened steel, 7 flutes, variable helix. Solid carbide, AlTiN Nano coating. Manufacturer part number 845262-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.3120
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
5/16
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0050
Number of Flutes
7
Shank Diameter (Fractional)
1/4
Cutting Diameter (Fractional)
1/16
Size System
Fractional
Center Cutting
No
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
End Type
Corner Radius
LxD Ratio
5xD
Material
Solid Carbide
Maximum Workpiece Hardness
68 HRC
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Hardened Steel
Harvey Tool Corner Radius End Mill: 1/16" Dia, 5/16" LOC, 2-1/2" OAL, .005" Corner Radius, 7 Flute, AlTiN Nano, 845262-C6
$116.30
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
