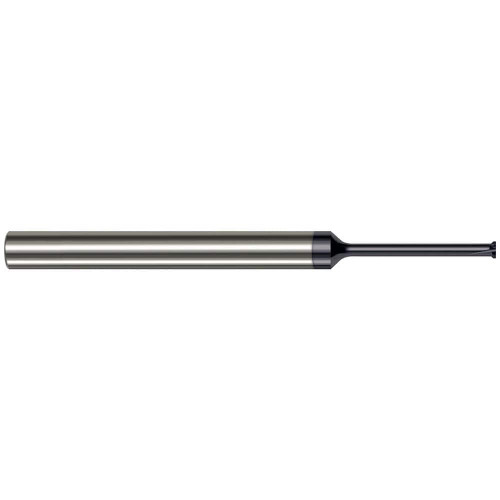

Harvey Tool Cutter: .0111" LOC, 2" OAL, 5 Flute, AlTiN, 846420-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-846420-C3
$95.80

Harvey Tool cutter, 5 flutes, back chamfer end. Solid carbide, AlTiN coating. Manufacturer part number 846420-C3.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0111
Shank Diameter (Decimal)
0.1875
Overall Length (Decimal)
2.0000
Coating/Finish
AlTiN
Neck Diameter (Decimal)
0.1070
Number of Flutes
5
Included Angle
90 degrees
Neck Length (Decimal)
0.4370
Neck Length (Fractional)
7/16
Shank Diameter (Fractional)
3/16
Angle per Side
45 degrees
End Length (Decimal)
0.0600
Head Diameter (Decimal)
0.1350
Chamfer Center Diameter (Decimal)
0.1249
Chamfer Center Length (Decimal)
0.0655
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Back Chamfer
Material
Solid Carbide
Overall Length (Fractional)
2
Harvey Tool Cutter: .0111" LOC, 2" OAL, 5 Flute, AlTiN, 846420-C3
$95.80
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
