HT - 849904

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-849904
$143.70

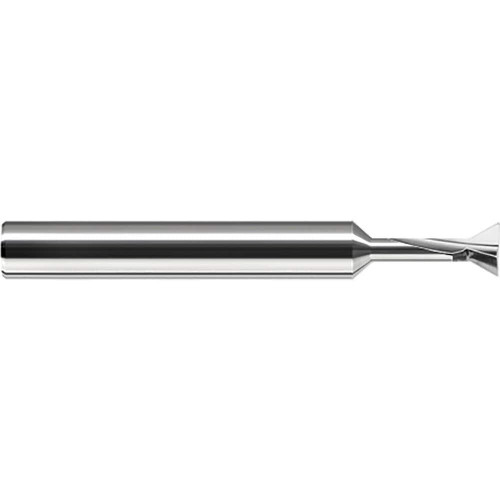

0.0620" (1/16) Cutter DIA x 0.0050" Radius x 0.0620" (1/16) Neck Length x 30° included Carbide Dovetail Cutter, 2 Flutes

Specifications

Unit of Measure
Fractional
Diameter
1/16 Inch
Shank Size
1/8 Inch
Overall Length
1-1/2 Inch
Coating/Finish
UN
Length of Cut (Decimal)
0.05
Overall Length (Decimal)
1.50
Neck Diameter (Decimal)
0.05
Corner Radius (Decimal)
0.005
Number of Flutes
2
Diameter (Decimal)
0.07
Included Angle
30 degrees
Neck Length (Decimal)
0.07
Neck Length (Fractional)
1/16
Shank Size (Decimal)
0.13
Angle per Side
15 degrees
HT - 849904
$143.70
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
