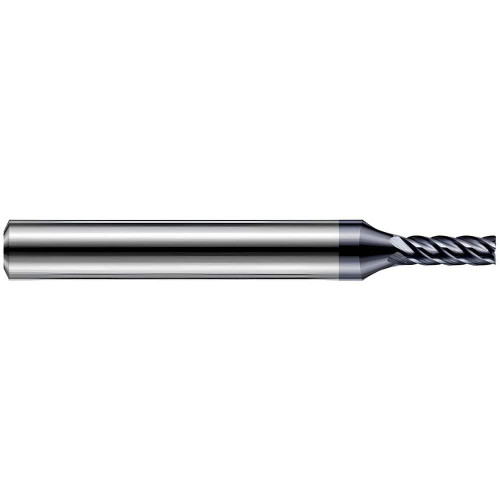

Harvey Tool Corner Radius End Mill: 3/32" Dia, 1/2" LOC, 2-1/2" OAL, .005" Corner Radius, 5 Flute, AlTiN Nano, 851793-C6

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-851793-C6
$111.70

Harvey Tool corner radius end mill for hardened steel, 5 flutes, variable helix, center cutting. Solid carbide, AlTiN Nano coating. Manufacturer part number 851793-C6.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0930
Length of Cut (Decimal)
0.5000
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN Nano
Length of Cut (Fractional)
1/2
Overall Length (Fractional)
2-1/2
Corner Radius (Decimal)
0.0050
Number of Flutes
5
Shank Diameter (Fractional)
1/4
Cutting Diameter (Fractional)
3/32
Size System
Fractional
Center Cutting
Yes
End Type
Corner Radius
LxD Ratio
5xD
Material
Solid Carbide
Maximum Workpiece Hardness
55 HRC
Secondary Workpiece Material
Stainless Steel, High-Temp Alloy
Shank Tolerance
h6
Variable Helix
Yes
Workpiece Material
Hardened Steel
Harvey Tool Corner Radius End Mill: 3/32" Dia, 1/2" LOC, 2-1/2" OAL, .005" Corner Radius, 5 Flute, AlTiN Nano, 851793-C6
$111.70
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
