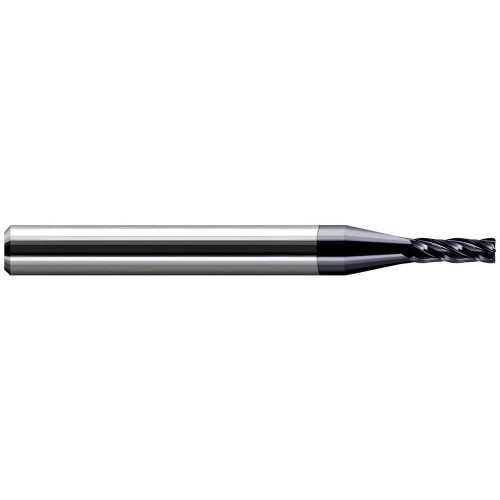

HT - 860893-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-860893-C3
$43.30

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0930
Length of Cut (Decimal)
0.1400
Shank Diameter (Decimal)
0.1250
Overall Length (Decimal)
1.5000
Coating/Finish
AlTiN
Length of Cut (Fractional)
9/64
Overall Length (Fractional)
1-1/2
Corner Radius (Decimal)
0.0150
Number of Flutes
3
Corner Radius (Fractional)
1/64
Shank Diameter (Fractional)
1/8
Cutting Diameter (Fractional)
3/32
Size System
Fractional
Center Cutting
Yes
Chip Breaker
No
Coolant Option
External Coolant
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
Double Ended
No
End Type
Corner Radius
LxD Ratio
1.5xD
Material
Solid Carbide
HT - 860893-C3
$43.30
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
